Zenition 50

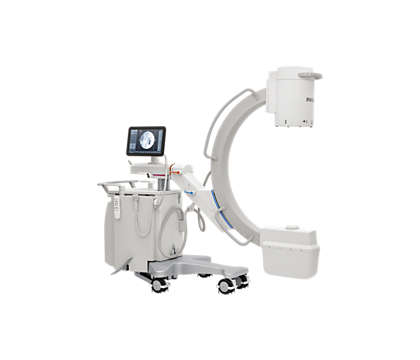

Point-and-shoot simplicity and reliable uptime make the Zenition 50 mobile C-arm with image intensifier the ideal systems for intensive use in interventions and surgeries. Part of the Zenition mobile C-arm family – a series of harmonized mobile C-arms that offers proven ease of use and future-fit capabilities.

Features

Save valuable time

To keep things moving in busy departments, users can work more efficiently with the touch controls and navigational aids of Unify workflow. In a user study¹ Unify workflow reduced miscommunication and positioning errors by almost half. Accelerate training

The intuitive point and shoot design and on-screen guidance of the Zenition 50 helps you train users faster. The Zenition user interface is so easy, it scored in the top 12% for best system usability¹. Boost return on investment

Be open to new referrals with the standard Windows® platform ready to incorporate new innovations and software upgrades. Drive down operational costs with collaborative RightFit support options and cost-effectively extend system lifetime with Technology Maximizer². Simplify set-up of your new OR

Save time and effort when setting up a new OR by having Philips organize and equip your new operating room. You can easily connect all Zenition mobile C-arms with other OR systems and your hospital infrastructure through advanced connectivity and interoperability tools, including high speed wireless data transfer.

Technical Specifications

X-ray generator: Rotating anode tube with active heat management, Nominal power: 15 kW: 120 kV, 125 mA, X-ray tube: Monoblock 78,125 kHz high-frequency, micro-processor controlled generator, Image Intensifier: Triple-mode 9" HRC / Triple-mode 12" GG, Constant beam filtration: Integrated beam filter: 1.0 mm Al. + 0.1 mm Cu, Image processing: ✓, TV camera type: CCD, high resolution 1K², Nominal II formats: 23, 17, and 13 cm (9", 7", and 5") / 31, 23, and 17 cm (12", 9", and 7"), Stand monitor: 15" LCD monitor on the C-arm gives a whole new level of simplicity,
