Azurion 7 M20 with FlexArm

This ceiling-mounted system provides unlimited imaging flexibility for diverse procedures and exceptional positioning freedom for medical teams. Its compact set-up provides a highly cost-effective environment, ready for the procedures of the future. Seamlessly control all relevant applications from a single touch screen at table side, to help make fast, informed decisions in the sterile field. By working around you, Philips Azurion with FlexArm helps you advance your suite performance and deliver superior care.

Features

Unlimited imaging flexibility

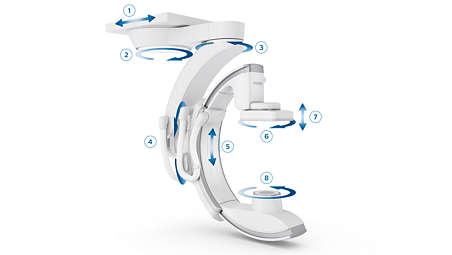

Azurion 7 M20 with FlexArm rotates on no less than eight axes to create virtually unlimited flexibility to perform imaging, from head to toe on the left and right side for 2D and 3D visualizations. The image beam remains aligned with the patient, allowing better visualization of anatomies during rotations or angulations. Consequently, 100% of participants confirmed in a user study that FlexArm would allow them to work with great flexibility.[1] More independent control for physician

FlexArm further evolves Azurion’s table side control with the intuitive Axsys controller to make procedures flow naturally and easily. When changes or complications occur, the physician can quickly and easily take action. This can also reduce the need for the physician and other staff to move in and out of the sterile field during a procedure. Full staff positioning freedom

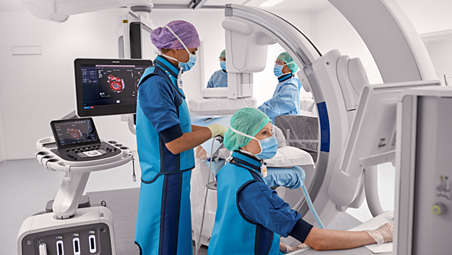

FlexArm's positioning flexibility frees up medical teams to choose the best working position. The C-arm’s 270-degree range of movement allows all imaging positions to be reached without hampering optimal team positioning and without needing to move the patient table. This avoids disturbing equipment and instruments, and keeps the anesthesia zone free. Improved workflow for multiple patient access points

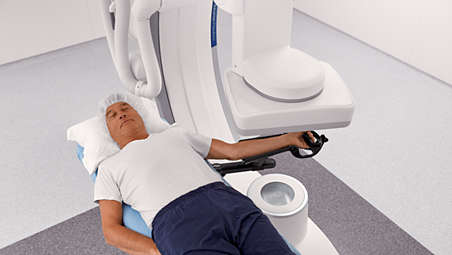

The FlexArm C-arm can provide off-center imaging along both sides of the table. This allows physicians to perform radial or brachial access cases on the left or right arm, fully or partially extended, without moving the patient or pivoting the table. The X-ray beam stays aligned with the arm to promote smooth navigation over its full length without making constant adjustments.

Technical Specifications

C-arm Z rotation: -135° to +135°, C-arm rotation in side position: 90° LAO, 90° RAO, C-arm rotation in head-end position: 120° LAO, 185° RAO, Table height (min./max.): 74 cm - 102 cm (29.1 inch - 40.2 inch), Tabletop width: 50 cm (19.7 inch), C-arm angulation in side position: 185° cranial, 120° caudal, Tabletop length (incl. OR rail): 319 cm (125.6 inch), C-arm angulation head-end position: 90° cranial, 90° caudal, C-arm rotation/angulation speed: up to 25°/sec (normal operation), up to 55°/sec in Rotational Angiography,
