HM-10

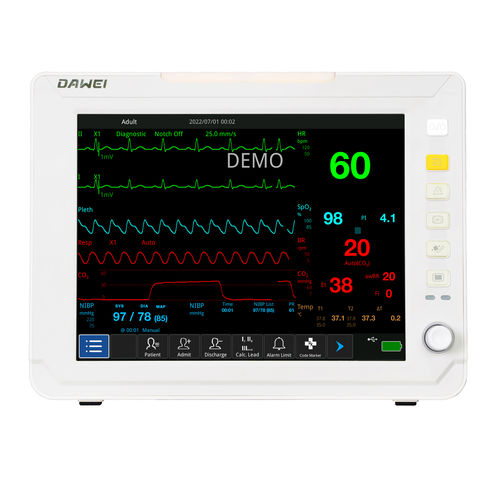

ICU CCU Portable Vital Signs 6-Parameter Patient Monitor

Features and advantages
Monitoring scope HR, ECG, SPO2, NIBP, RESP, TEMP, CO2 (optional).
1. 1024*768 color LCD display, full viewing angle display, 10-level brightness adjustment;
2. The vertical button layout on the right side satisfies the quick operation of various scenarios;
3. 30-second blood pressure measurement, performance, function, all-around;
4. ECG 12-coreanti-interference socket design;
5. There are three filtering modes of monitoring, diagnosis and surgery, to satisfy various scenarios;
6. There are more than three ways to enter the alarm limit setting, and there is no need to operate too much for newly received patients;
7. Support fast import/export of USB configuration to meet the needs of different departments;
8. Large storage capacity: it can meet the data storage requirements of continuous patient monitoring for at least 1200 hours;
9. With blood pressure STAT measurement mode, it will automatically exit after 5 minutes of continuous measurement;
10. With automatic blood pressure measurement interval time adjustment above level 10, to meet the needs of different patients for monitoring;
11. Operation interface in more than 5 languages; convenient operation of patient information entrydeletesave;
12.20 kinds of arrhythmia event alarms, support ST segment analysis function;

Specifications

Configuration
portable
Measured parameter
ECG, RESP, TEMP, heart rate, CO2, NIBP, SpO2
Applications
intensive care
Patient condition
for high blood pressure, for sleep apnea
Options and accessories
USB
Other characteristics
continuous
Screen size

12.1 in

Battery life

5 h

Weight

3.1 kg
(6.8 lb)
